Designed for high-risk industrial environments, the MG-400 provides 4 independent channels with a graphical display showing gas level, alarm status, and faults per channel. It supports adjustable alarm thresholds, multiple relay actions, and integration with industrial automation and fire alarm systems—aligned with standards such as ATEX and IEC 60079. Ideal for factories, oil & gas, and hazardous areas—available through ANC.
Arif Alnahdi ANC Industrial Gas Detection & Alarm System is specifically designed for use in high-risk industrial environments that require high detection accuracy and continuous operational reliability. The system provides real-time monitoring of flammable and toxic gas levels, issuing multi-level alarms and initiating automatic control actions to mitigate risks before they escalate.
The system supports integration with industrial automation systems and intelligent addressable fire alarm systems, making it an ideal solution for factories, oil & gas facilities, and classified hazardous areas.
Technical Specifications of the Industrial Gas Detection & Alarm System
- System Type: Industrial Gas Detection & Alarm System
- Control Panel:
- Model: MG-400
- Number of Channels: 4 independent channels
- Graphic LCD 240×64 display with adjustable backlight
- Gas level, alarm status, and fault status indication for each channel
- Alarm Settings:
- Configurable high and low alarm thresholds per channel
- Sub-alarm relays (1st level)
- High-level alarm relays
- Fault relay
- Detector Compatibility:
- Industrial gas detectors
- Conventional detectors (Two-wire / Three-wire)
- Up to 20 conventional detectors per channel
- Control Outputs:
- Ventilation system activation
- Interface with fire suppression systems or gas shut-off systems
- Control & Security:
- Remote control capability
- Password protection to prevent unauthorized access
- Enable/disable control for sounder outputs
- Integration:
- Interface with intelligent addressable fire alarm systems via I/O modules
- Integration with graphical monitoring software
- Standards & Certifications:
- ATEX
- IEC 60079-0 / IEC 60079-11
- EN ISO/IEC 80079-34
Main Components of the Industrial Gas Detection & Alarm System

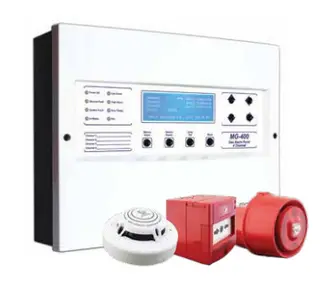

- MG-400 Industrial Gas Alarm Control Panel (4 channels)
- Explosion-proof industrial gas detectors (ATEX):
- Flammable gases
- Toxic gases
- IR hydrocarbon detectors
- Zener barriers for hazardous areas
- Weather-resistant audible and visual alarms (IP65)
- Intrinsically Safe industrial manual call points
- Interface modules for addressable fire alarm systems
- Graphical monitoring and management software (optional)
Key Features of the ANC Industrial Gas Detection System – MM.BRS.YD.064
- Designed for hazardous environments: Specifically engineered for operation in classified hazardous areas.
- High-accuracy detection: Continuous gas level monitoring with multi-level alarm response.
- Configuration flexibility: Supports a wide range of industrial and conventional gas detectors.
- Advanced industrial integration: Enables seamless connection with automation and fire alarm systems.
- Control and security: User access levels and password-protected settings.
- High operational reliability: Stable performance under harsh industrial conditions.
Suitable Applications for Industrial Gas Detection & Alarm Systems
- Factories and industrial facilities
- Oil & gas facilities
- Power plants
- Chemical plants
- Industrial warehouses
- High-risk classified areas (ATEX Zones)
Contact Arif Alnahdi ANC now to obtain a certified industrial gas detection and alarm system, with engineering design, supply, and installation fully compliant with industrial safety requirements in Saudi Arabia.
